Heat pipe pressurized solar collector

The characteristic of heat pipe
1. No water directly flowing in the tubes, enabling the system still workable in case of occasional tube breakage.
2. Antifreezing, all-year-round service even in extremely cold area.
3. Adopting the best conduction performance heat pipe.
4. Directly connected with city water without a circulation pump.
5. Withstanding high pressure(0.6MPa), comfortable shower.

hiddenValue

  • Product Description
  • The characteristic of heat pipe

    1. No water directly flowing in the tubes, enabling the system still workable in case of occasional tube breakage.

    2. Antifreezing, all-year-round service even in extremely cold area.

    3. Adopting the best conduction performance heat pipe.

    4. Directly connected with city water without a circulation pump.

    5. Withstanding high pressure(0.6MPa), comfortable shower.



    Poduct parameters

    Model

    ZRG/0.6-WF-1.0/10-58/1

    ZRG/0.6-WF-1.5/15-58/1

    ZRG/0.6-WF-1.8/18-58/1

    ZRG/0.6-WF-2.4/24-58/1

    ZRG/0.6-WF-3.0/30-58/1
    Vacuum Tubes(D×L×N) 58×1800×10 58×1800×15 58×1800×18 58×1800×24 58×1800×30
    Manifold casing material Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum
    Frame material Galvanized sheet Galvanized sheet Galvanized sheet Galvanized sheet Galvanized sheet
    Insulation Rock wool Rock wool Rock wool Rock wool Rock wool
    Header pipe material Red copper Red copper Red copper Red copper Red copper
    Heat pipe material Red copper Red copper Red copper Red copper Red copper
    Heat pipe diameter φ8mm φ8mm φ8mm φ8mm φ8mm
    Heat pipe heater size φ14mm φ14mm φ14mm φ14mm φ14mm
    Tube material 3 targets 3 targets 3 targets 3 targets 3 targets
    Operating pressure 12 bar 12 bar 12 bar 12 bar 12 bar
    Mounting type Flat/tilt roof Flat/tilt roof Flat/tilt roof Flat/tilt roof Flat/tilt roof
    Anti freezing -35℃ -35℃ -35℃ -35℃ -35℃
    Hail resistance 25mm 25mm 25mm 25mm 25mm
    Inlet/outlet size 1/2" 1/2" 1/2" 1/2" 1/2"

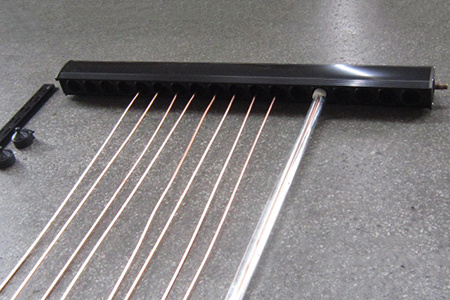

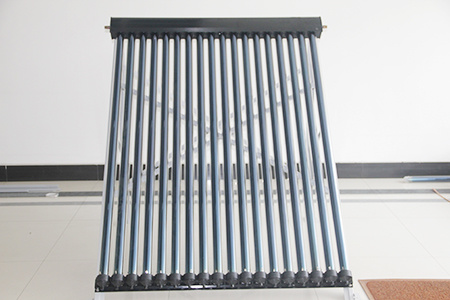

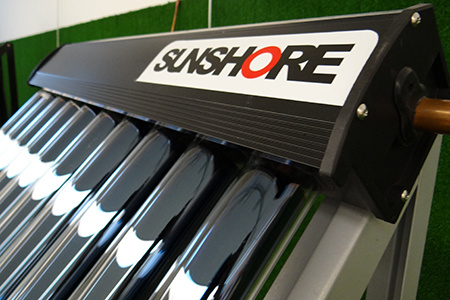

    Heat pipe pressurized solar collector Heat pipe pressurized solar collector
    Heat pipe pressurized solar collector Heat pipe pressurized solar collector
    Heat pipe pressurized solar collector Heat pipe pressurized solar collector
    Heat pipe pressurized solar collector Heat pipe pressurized solar collector
