  • model Q-B-J-90-3.9-0 solarkeymark.jpg

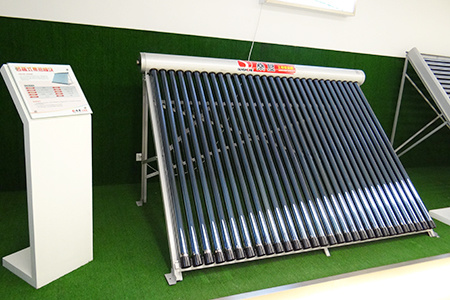

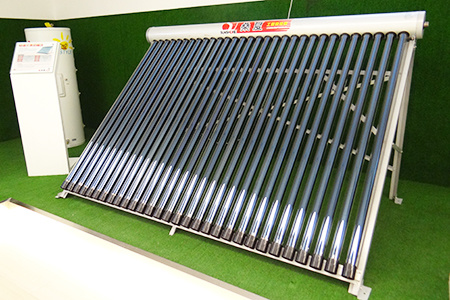

Non-pressure solar collector

The detail of material

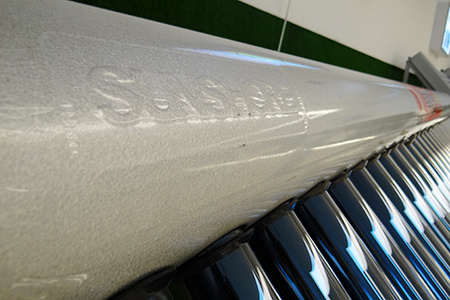

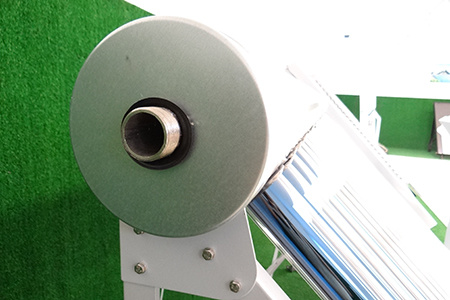

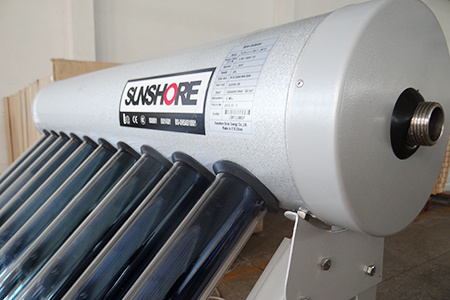

Outer tank:White Color steel Sheet
Inner tank:sus 304-2B Stainless steel sheet
Insulation:Polyurethane foam

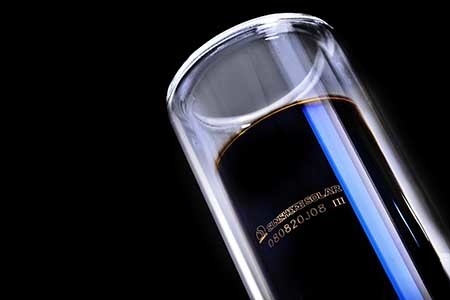

Vacuum tube:Borosilicate glass 3. 3
Absorption coating:Copper/SS/AI
Stand:Aluminum alloy/Galvanized sheet

hiddenValue

  • Product Description
  • The detail of material

    Outer tank:White Color steel Sheet

    Inner tank:sus 304-2B Stainless steel sheet

    Insulation:Polyurethane foam

    Vacuum tube:Borosilicate glass 3. 3

    Absorption coating:Copper/SS/AI

    Stand:Aluminum alloy/Galvanized sheet



    Poduct parameters

    Model Vacuum Tubes
    (D×L×N)
    Aperture
    (m²)
    Collector Volume
    (L)
    40 HQ
    loading
    20 GP
    loading

    Q-B-J-1-54/2.34/0

    φ58-1800-18 2.34 54 176 76
    Q-B-J-1-60/2.60/0 φ58-1800-20 2.60 60 164 70
    Q-B-J-1-78/3.38/0 φ58-1800-26 3.38 78 126 54
    Q-B-J-1-90/3.90/0 φ58-1800-30 3.90 90 112 48



    Non-pressure solar collector
    Non-pressure solar collector
