The detail of material:</br> Outer tank: Al-Zn coated steel sheet/color steel</br> Inner tank: SUS 304-2B stainless steel sheet</br> Insulation: polyurethane foam</br> Vacuum tube: borosilicate glass 3.3</br> Absorption coating: Copper/SS/Aluminum</br> Stand: aluminum alloy/galvanized sheet</br> Option: auto feeding tank and controller are available for charging water
The principle of Heat Pipe Pressurized solar water heater</br> Step 1: Evacuated tubes absorb sunlight and convert it to usable heat.</br> Step 2: A vacuum between the two glass layers insulates against heat loss improvement efficiency. The heat transfer fin helps to transfer heat from the evacuated tube to the to the copper heat pipe.</br> Step 3: The heat pipe contains a small amount liquid which forms steam when heated, rapidly transferring the heat up to the water in the storage.
<strong>Features for Flat Plate solar heater heater</strong></br> 1. Safe and steady: Flat plate solar collector uses all copper fuild tube;system operating is steady and safe.</br> 2. Pressurized operating: working pressure is 0.6Mpa.</br> 3. High heat efficiency: absorbing coating of the collector is black chrome or blue sputtering; absorbing rate is 92～96%, emission rate is 5%-15%, heat efficiency is high.</br> 4. Good temperature preservation: thickness insulation layer is 50mm;constant temperature high pressure quantitative foam; less then 5℃ per 24hours.</br> 5. Long using life: inner tank is 1.2-2.0mm stainless steel, resist high temperature and corrosion.
The characteristic of heat pipe<br> 1. No water directly flowing in the tubes, enabling the system still workable in case of occasional tube breakage.<br> 2. Antifreezing, all-year-round service even in extremely cold area.<br> 3. Adopting the best conduction performance heat pipe.<br> 4. Directly connected with city water without a circulation pump.<br> 5. Withstanding high pressure(0.6MPa)， comfortable shower.
Flat solar collector is a device that absorbs solar energy and transfers heat to working fluid. It is a special heat exchanger. The flat plate solar collector is composed of one heat-absorbing plate cord and one shell and one piece of transparent cover plate and thermal insulation material and some related components. After the circulation pipe and the heat preservation water tank are connected, it absorbs solar energy to heat the cold water.<br> When the flat plate solar collector works, the solar passes through the transparent cover and is projected on the heat absorption plate, absorbed by the heat absorption plate and converted into heat energy, and then transferred to the heat transfer medium inside the heat absorption plate and the temperature of the heat transfer working medium rises as a useful energy output of the heat collector. At the same time, the heat-absorbing plate after the temperature rise must inevitably dissipate heat to the surroundings through conduction, convection and radiation to cause heat loss of collector.
Green Energy, Clean Life!
Sunshore Solar Energy Co.,Ltd.
Established in 1998
Number of employees
More than 60 patents

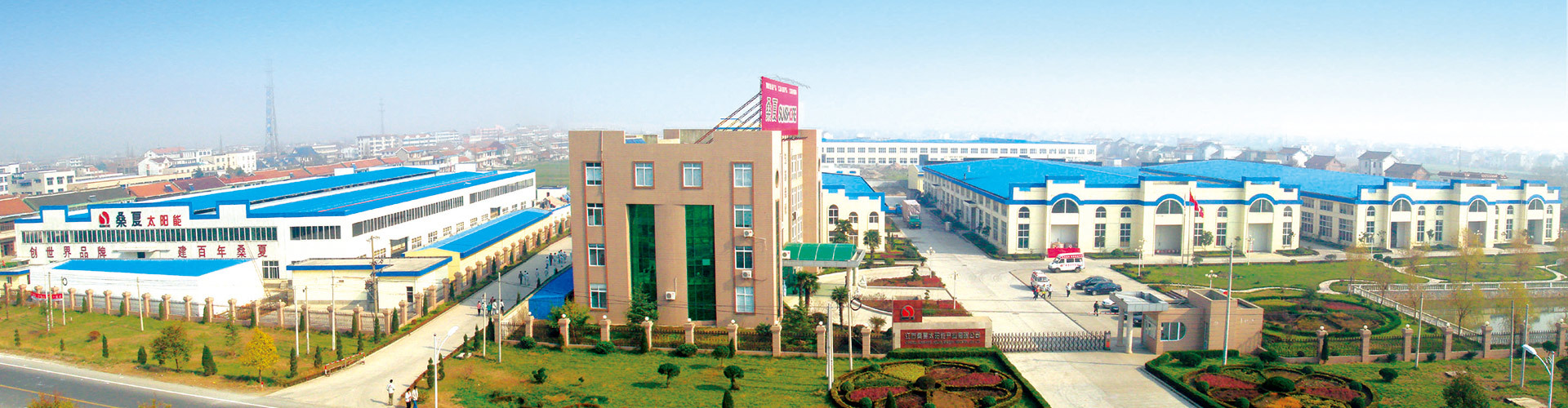

SUNSHORE was founded in 1998. It is a high-tech enterprise specializing in the research, development, production and sales of solar thermal utilization technology products. The company takes "Creating AWorld Brand, Building Brilliant SUNSHORE, and Serving the Country with Industry" as its development vision. The company promotes the entrepreneurial spirit of "persistent, passionate and surpassing". Keeping pace with the times, concentrating on its operations, its comprehensive strength ranks in the forefront of the industry, and it is one of the enterprises in China's solar thermal utilization industry.......
