Solar water heater project
● Solar water heaters integrate with buildings perfectly.
● System runs automatically, water tanks are always full of water, electrical heater assistance can endure 24 hours hot water supply.
● Non-pressure solar water heater runs directly, simply, safely and reliably.
● Apply to multi-storey buildings, enterprises, schools, district, hotels, hospitals, etc.
● Solar water heaters are arranged compactly, standardization, itegrate with buildings perfectly and improve the overall construction grade, suitable for flat roof buildings .
● The system is composed of collector, auto feeding tank storage tank, controller and pipes, the system runs automatically, safely and reliably.
● Apply to multi-storey buildings or more requirements on water in bottom floors buildings, enterprises, schools, hospitals, hotels, districts and so on.
 |
 |
|
● Using drainage dint position, solar water heaters can be installed in the slope roof, solar water heater is lower than the peak of construction, and integrated with the construction perfectly. ● The system runs simply, safely and reliably. ● Applies to integral solar water heaters for householders, but also to singles of series-parallel connection. |

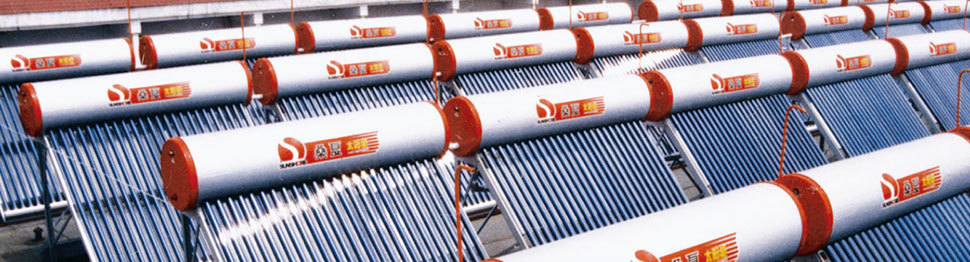

● Solar water heaters are installed on top inclined roof in a row, and the other row is installed on the middle flat roof, they blend the construction aesthetic design and combine with building perfectly ● With automatically control, anti-freezing pipe, water temperature and water level sensors, assistant energy system ● This system operates without pressure, simple, safe and reliable. Also can use pressurized solar water heaters, run in pressure condition. It can make water come out with pressure. It suits for common consumer or villa in bottom floor family ● It also suits to communities, hotels, enterprises, schools and hospitals. |
 |
 |
|
● Combine with construction perfectly to solve the limited area of the inclined roof. ● Leave position for solar water heater when building, can use single integral type separately for each family or series-parallel connection with kinds of combined styles. ● This solar water heater runs without pressure, controlled automatically by controller. ● Apply to tall buildings with inclined roof. |

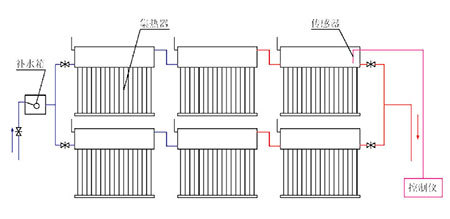

Principles and Characteristics: ● Overflow system: Charging water by hand till the water flows from the overflow pipe. ● Controller system: When the tank water level below the setting data, the solenoid valve will open to charge water, when the water level up to the setting data, the valve will close. ● Electrical heater assistant: When the water temperature in the tank is below the setting data at the setting time, the electrical heater will start to heat the water till reach the setting data. |
 |
 |
|
Principles and characteristics: ● Auto charging water: Charging water by auto feeding tank. When using hot water, water level of tank and auto feeding tank go down together(due to the balance principle)， the float valve will open to charge water till the tank is full of water. ● Electrical heater assistance: When the tank water temperature is below the setting data, the electrical heater will start to heat the water till reach the setting data. Each user can achieve metering water supply through the installation of the water table or the IC card implementation. |

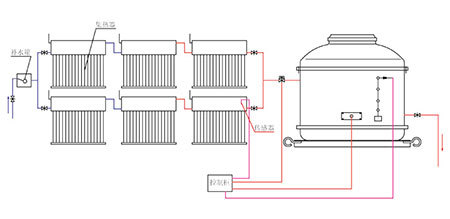

Principles and characteristics: Auto charging water: When the storage tank water level is below the setting level, the solenoid valve will open, water in all solar water heaters go into storage tank, the float valve in the auto feeding tank will open to charge till the storage tank is full of water. Electrical heater assistant: When the water temperature in the tank is below the setting data ,the electrical heater will start to heat the water till reach the setting data . Each user can achieve metering water supply through the installation of the water table or the IC card implementation.
|
